Introduction
A driver pulls up to a warehouse complex and finds the wrong gate. The coordinate pointed to the middle of the parcel, not the loading dock on the far side. Ten minutes later, the rest of the route is running behind.
Delivery teams feel this daily. Internal research shows over 71% of drivers spend 4 to 10 minutes or more hunting for the exact drop-off spot. Last-mile delivery already accounts for 53% of shipping costs. Customers expect precision, and some services now promise delivery within 10 to 15 minutes.
This article explains where rooftop geocoding helps in delivery operations, where it falls short, and how to measure its results.
Key Takeaways
- Rooftop geocoding places a validated address at a specific building, not a street, ZIP, or locality.
- Better stop placement improves routing, dispatch, ETAs, and exception handling.
- A rooftop point rarely identifies the right gate, dock, or apartment unit.
- Track precision, confidence, no-match rates, and freshness for every geocode.
- Value comes from connecting coordinates to routing and driver feedback.
What Is Rooftop Geocoding?
Rooftop geocoding converts a delivery address into latitude and longitude placed at or near the building tied to that address. Smarty describes it as placing the point on the building roof.
Less precise methods sit below it:
- Parcel centroid: the center of a property, such as the middle of an office block
- Street interpolation: a house number positioned along a street segment using an address range
- ZIP Code centroid: an approximate point for a whole postal area
- Locality: a populated place, with no building detail
Providers define these tiers differently. Esri's address points can represent either a rooftop or a parcel centroid, so keep the precision label the provider returns.
Teams use rooftop coordinates in address capture, dispatch, fleet maps, and logistics analytics. Treat the coordinate as one input. It does not replace address validation, road-network data, access-point information, traffic data, or route optimization.
Key Advantages of Rooftop Geocoding
The benefits are operational and measurable: fewer location errors, better route decisions, more reliable ETAs, and more delivery capacity. Rooftop precision still has to be judged alongside address validity, confidence metadata, road access, building complexity, and the quality of the routing platform.
Advantage 1: Fewer Failed or Delayed Stops
A rooftop point puts the stop closer to the intended property than a street or ZIP-level coordinate. That helps drivers tell nearby buildings, lots, and address ranges apart.
It matters most for:
- Large properties and multi-building complexes
- Rural addresses
- Newly developed areas
- Streets where adjacent entrances cause confusion

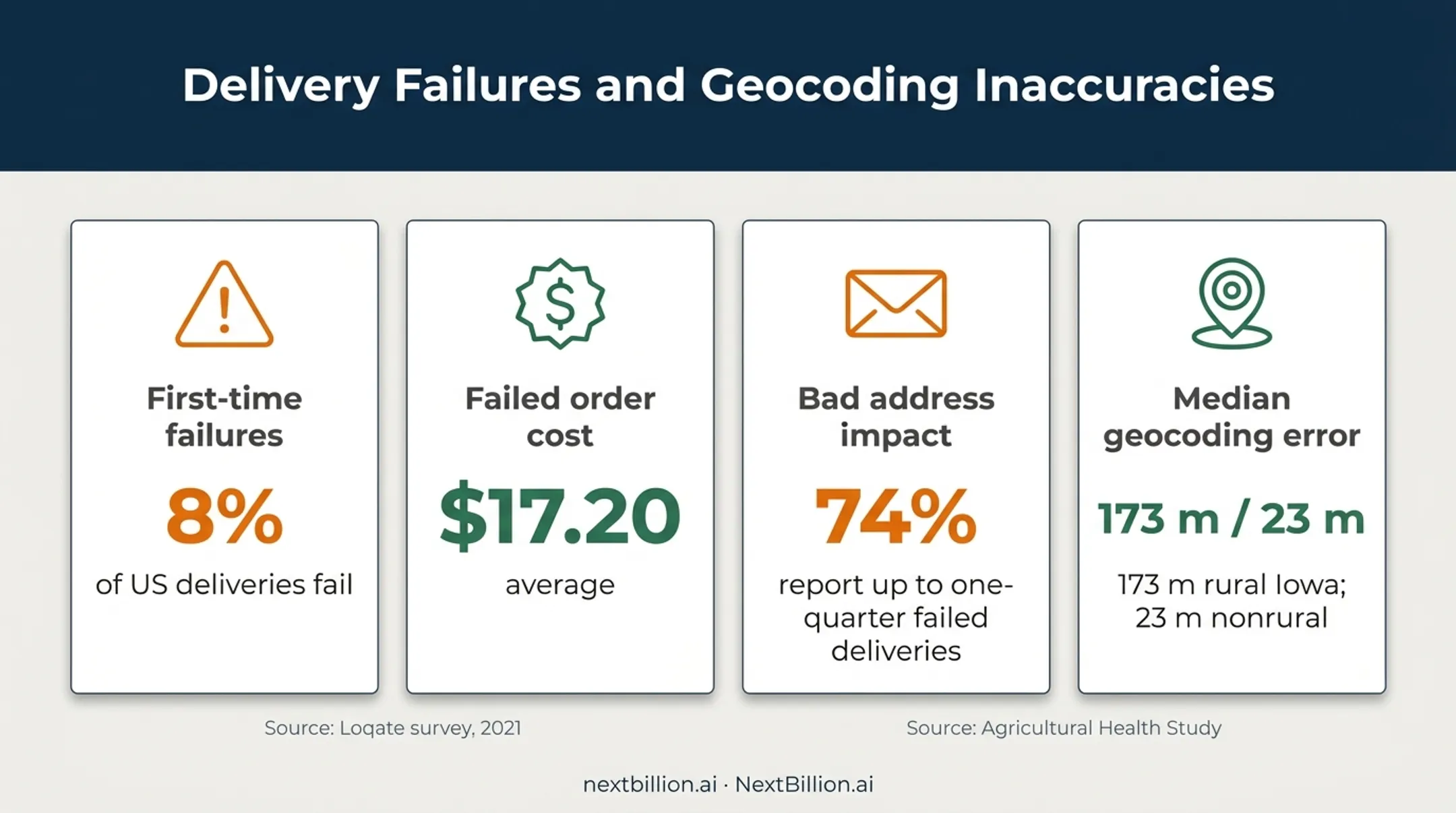

The cost of getting it wrong is real. A Loqate survey of retail executives found 8% of US first-time deliveries fail, at an average of $17.20 per failed order. That is a 2021 survey estimate, not a carrier tariff. In the same research, 74% of businesses said bad address data causes up to a quarter of their failed deliveries.
Accuracy also varies by terrain. In an Agricultural Health Study, median geocoding errors were 173 m in rural Iowa versus 23 m in nonrural areas. Don't assume uniform precision everywhere.
KPIs affected: first-attempt delivery rate, on-time rate, misdelivery rate, reattempts, driver contact rate, exceptions, and complaints.
Rooftop precision improves the starting point. It does not guarantee front-door accuracy.
Advantage 2: More Accurate Routing, Dispatch, and ETAs
Precise stop coordinates give routing engines a truer picture of where deliveries sit. Distances, sequencing, clustering, territory assignment, and arrival estimates all improve. Combined with traffic, vehicle, time-window, and service-time constraints, better coordinates expose inefficient stop sequences and route overlap.
The payoff is fewer on-road surprises, more dependable customer notifications, and better use of drivers and vehicles.
Logistics software platforms using NextBillion.ai have reported a 30% improvement in ETA accuracy in internal research. That reflects the full routing stack, not geocoding alone. UPS credits its ORION platform with about 100 million miles saved annually, and that figure is not a rooftop-only result either.
Rooftop coordinates cannot account for:
- One-way roads and private roads
- Truck restrictions
- Parking limits
- The correct building entrance
The routing and map data must handle those. HERE's documentation notes that truck routes only reflect restrictions when vehicle parameters such as weight and height are supplied.
KPIs affected: route miles, driving hours, fuel use, stops per route, route adherence, ETA accuracy, vehicle utilization, and late deliveries.
This matters most for multi-stop routes, dense urban networks, narrow delivery windows, mixed fleets, and operations that rebalance routes as volume shifts.
Advantage 3: A Reliable Location Foundation for Scale
Standardized, geocoded addresses create one location layer across order management, customer records, dispatch, driver apps, proof of delivery, and reporting. Precision and confidence fields let operations separate trustworthy rooftop matches from lower-precision fallbacks that need review.
That consistency pays off as volume grows:
- Faster exception handling
- More useful service-area and territory analysis
- Less manual correction
- Driver corrections and delivery outcomes fed back into address quality
Be careful with match rate. It measures how many addresses can be geocoded, not how many land on a rooftop. Mapbox's coordinates.accuracy field, for example, separates rooftop, parcel, interpolated, and approximate results.
KPIs affected: match rate, rooftop-match rate, no-match rate, fallback precision, address-correction rate, manual review time, data freshness, and cost per delivered stop.
This matters most for businesses merging multiple order sources, entering new service areas, or working with several delivery partners.
What Happens When Rooftop Geocoding Is Missing or Ignored

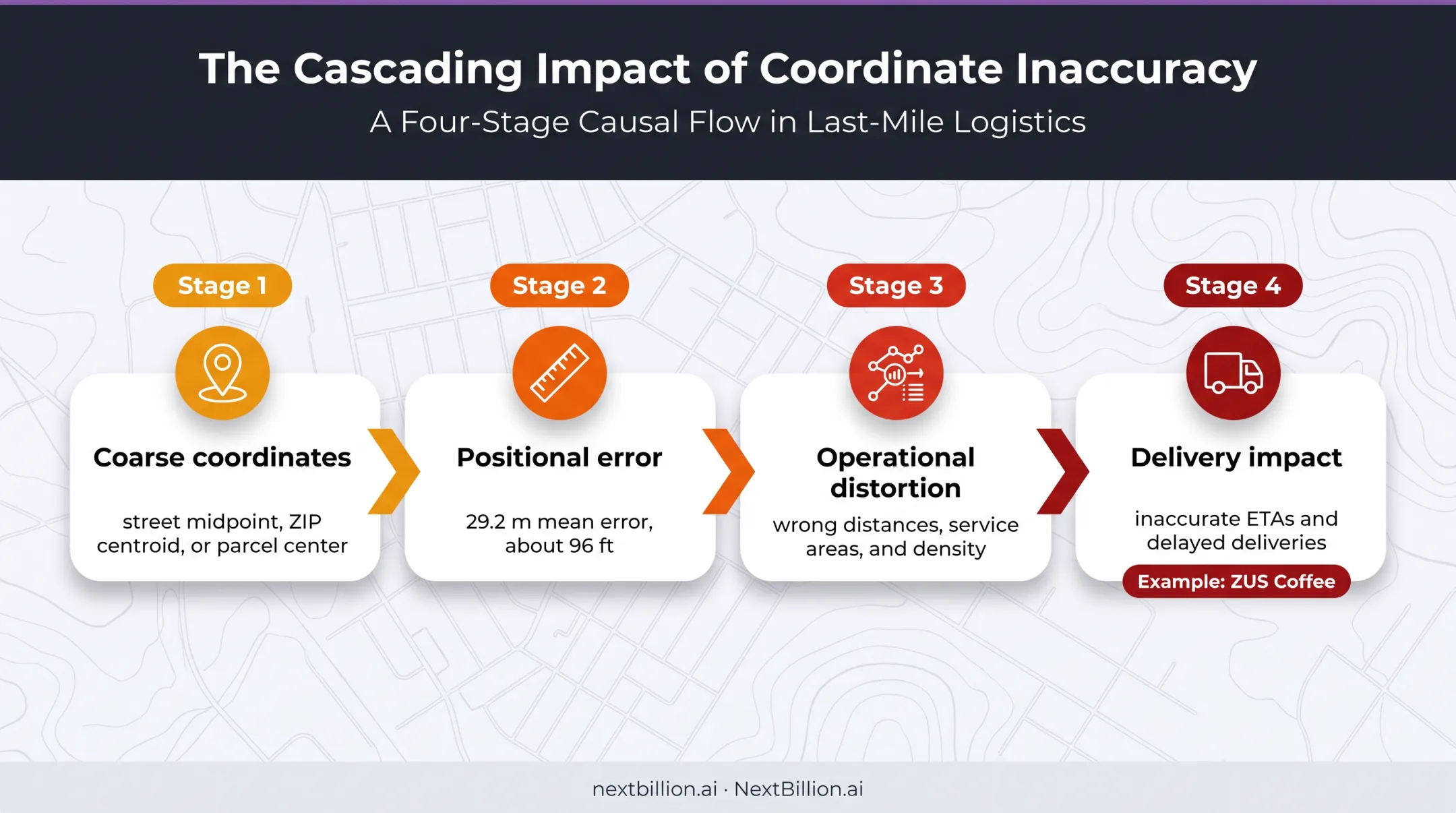

Coarse coordinates can drop a stop at a street midpoint, ZIP centroid, parcel center, or nearby road. Drivers then face:
- Wrong turns and wrong sides of the road
- Missed entrances
- Driver calls and reattempts
- Late arrivals and reactive dispatch fixes
The US Census Geocoder documentation notes that its address ranges can include structure numbers where no structure exists, and a match is not proof of a building. A New York City study found street-segment geocoding had a 29.2 m (about 96 ft) mean distance error against address points. That is positional error, not a failure rate, but at a dense curb it can put a driver at the wrong building.
Bad coordinates also distort analytics. Distances, service areas, delivery density, and ETA performance can look better or worse than they are. ZUS Coffee's former mapping platform had poor map data quality that produced inaccurate distance and time estimates, which led to inaccurate ETAs and delayed deliveries.
A plausible-looking geocode that skips precision, confidence, validity, and freshness checks can still push bad data into every downstream system.
How to Get the Most Value from Rooftop Geocoding
Rooftop geocoding works when it is applied consistently, checked against delivery outcomes, and wired into routing and dispatch. A passive database field delivers little.
Validate and Standardize Addresses First
Parse customer input, fix formatting and spelling, validate against an authoritative source, and keep the original input for audits. Geocoding an incomplete or ambiguous address produces a confident-looking but wrong result.
Validation and positioning are separate. Google notes an apartment can validate while its coordinate stays at building level.
Preserve Precision, Confidence, and Fallback Metadata
Store latitude, longitude, precision level, confidence or match status, source, timestamp, and any no-match or fallback reason. Then route high-confidence records automatically and send low-confidence ones to manual review or customer confirmation.
Convert the Rooftop Point Into an Access Point
The best stop may be a driveway, dock, gate, parking entrance, lobby, or service entrance. Esri notes that rooftop coordinates suit analysis and display, while street-entry points can be better for routing because a rooftop may sit far from the street. Google's Geocoding API likewise keeps entrances and navigationPoints as separate fields.

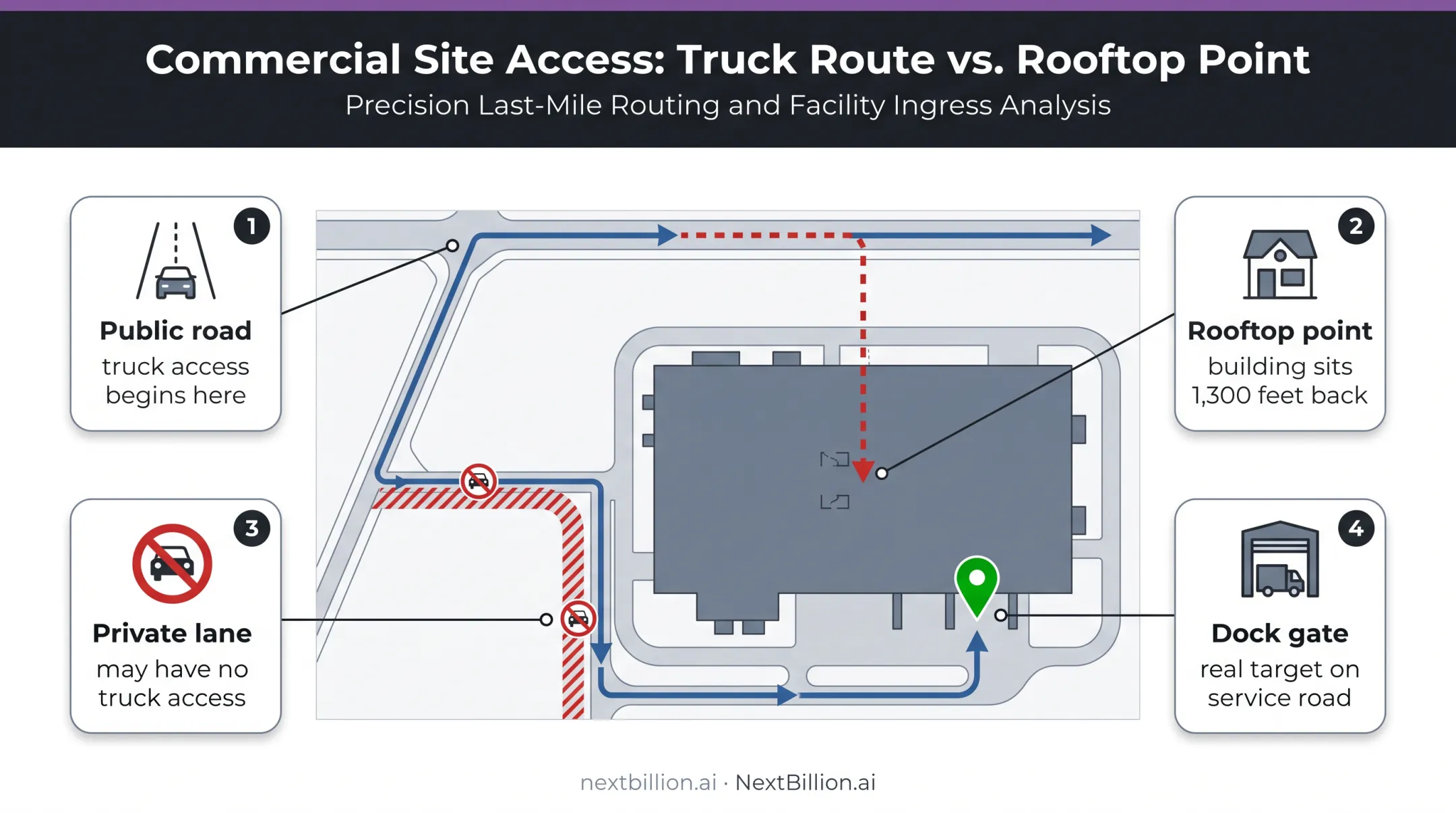

Picture a distribution center whose building sits about 1,300 feet back from the road. The rooftop point is geographically correct, but a truck aimed at it may take a private lane with no truck access. The real target is the dock gate on the service road. UPS's UPSNav guides drivers to spots like loading docks not visible from the street for this reason.
Combine rooftop points with road attributes, building data, secondary-unit details, access restrictions, driver notes, and arrival history.
Connect Geocoding to Route Planning and Dispatch
Coordinates earn their keep when they feed route optimization, vehicle restrictions, time windows, traffic-aware ETAs, driver navigation, and proof of delivery.
NextBillion.ai offers an API-first platform for this layer. Its Route Optimization API supports 50+ constraints, and its Road Editor App lets teams edit road attributes without code. It also integrates with fleet systems such as Geotab and Samsara and offers per-vehicle or per-order pricing. Its Geocoding API reference documents postcode geocoding; confirm current rooftop-level support before planning around it.
Review Outcomes and Keep Improving
Compare precision and confidence against failed attempts, route deviations, customer contacts, ETA variance, and driver corrections. Set review thresholds, refresh stale addresses, and investigate repeat exceptions.
Use a simple measurement framework:
- Set a baseline: capture first-attempt rate, reattempts, route miles, ETA variance, and contacts for 8 to 12 weeks.
- Roll out in stages: apply rooftop geocoding to some regions or depots first.
- Compare against a control group: World Bank guidance on difference-in-differences compares treated and untreated groups' before/after changes.
- Separate other causes: log routing, validation, traffic, and process changes so gains aren't misattributed.
Conclusion
Delivery performance depends on knowing the correct address and the most useful geographic point for it. Rooftop geocoding supplies the building. Access data, routing logic, and driver feedback supply the rest.
The benefits compound when coordinates are validated, enriched, connected to route planning, and reviewed against real outcomes. Treat address precision as an ongoing practice, and your network gains control and capacity as it grows.
Frequently Asked Questions
Can you give an example of rooftop geocoding?
A validated address like "100 Main St" becomes coordinates on that building's roof. A driver may still need the driveway, entrance, or loading area, which require access-point data.
What is rooftop geocoding used for in delivery?
It supports stop placement, route planning, dispatch, ETA calculation, delivery-area analysis, and fewer exceptions.
How is rooftop geocoding different from street-level or ZIP Code geocoding?
Rooftop results identify a specific building or property. Street- or ZIP-level results represent a broader or approximate area.
Does rooftop geocoding guarantee a driver will reach the front door?
No. A rooftop point may not identify the right driveway, gate, parking area, dock, entrance, or apartment unit.
How can businesses improve rooftop geocoding accuracy?
Validate and standardize addresses, store precision and confidence metadata, add access-point data, keep road information current, and feed back driver corrections.
How should businesses measure the value of rooftop geocoding?
Track first-attempt success, reattempts, delivery accuracy, route miles, fuel or drive time, ETA accuracy, manual exceptions, and customer contacts against a baseline.
