Introduction
The shortest route on a map can still send a driver to a loading dock after the appointment window closes. It can push a truck over its 11-hour driving limit or burn extra fuel on a congested corridor.
Optimal route planning means selecting and sequencing stops to meet a specific operational objective while respecting real-world constraints. Distance is only one input.
Trucking operating costs averaged $2.336 per mile in 2025, according to ATRI, so poor sequencing gets expensive quickly. This article breaks down the algorithms behind route optimization, Vehicle Routing Problem (VRP) variants, constraints, objective functions, and dynamic reoptimization. It also covers how to evaluate a system in production.
Key Takeaways
- The best route depends on the objective: time, cost, reliability, capacity, or a weighted mix.
- Shortest-path algorithms handle point-to-point trips; VRP solvers handle stops, vehicles, and business rules.
- Exact methods prove optimality on small problems; heuristics and hybrids scale better.
- Route quality depends on clean data and on comparing planned against actual performance.
What Is Optimal Route Planning?
Optimal routing means choosing the most effective route, or set of routes, for a defined goal. That goal might be minimum travel time, operating cost, fuel use, lateness, or the number of vehicles required.
A shortest path connects one origin and one destination. Route optimization assigns and sequences many stops across multiple vehicles. Google's OR-Tools documentation describes vehicle routing as finding the best routes for a fleet, where "best" usually means least total distance or cost. The single-vehicle case is the Traveling Salesperson Problem (TSP).
The core problem model
Solvers translate operations into a graph:
- Locations become nodes and roads become edges.
- Vehicles and orders become decision variables.
- Business rules become constraints the solver must satisfy.
The objective can shift too. OR-Tools' VRP example minimizes the longest single route, which finishes deliveries sooner even if fleet-wide distance goes up. Total distance is not the only fleet objective.

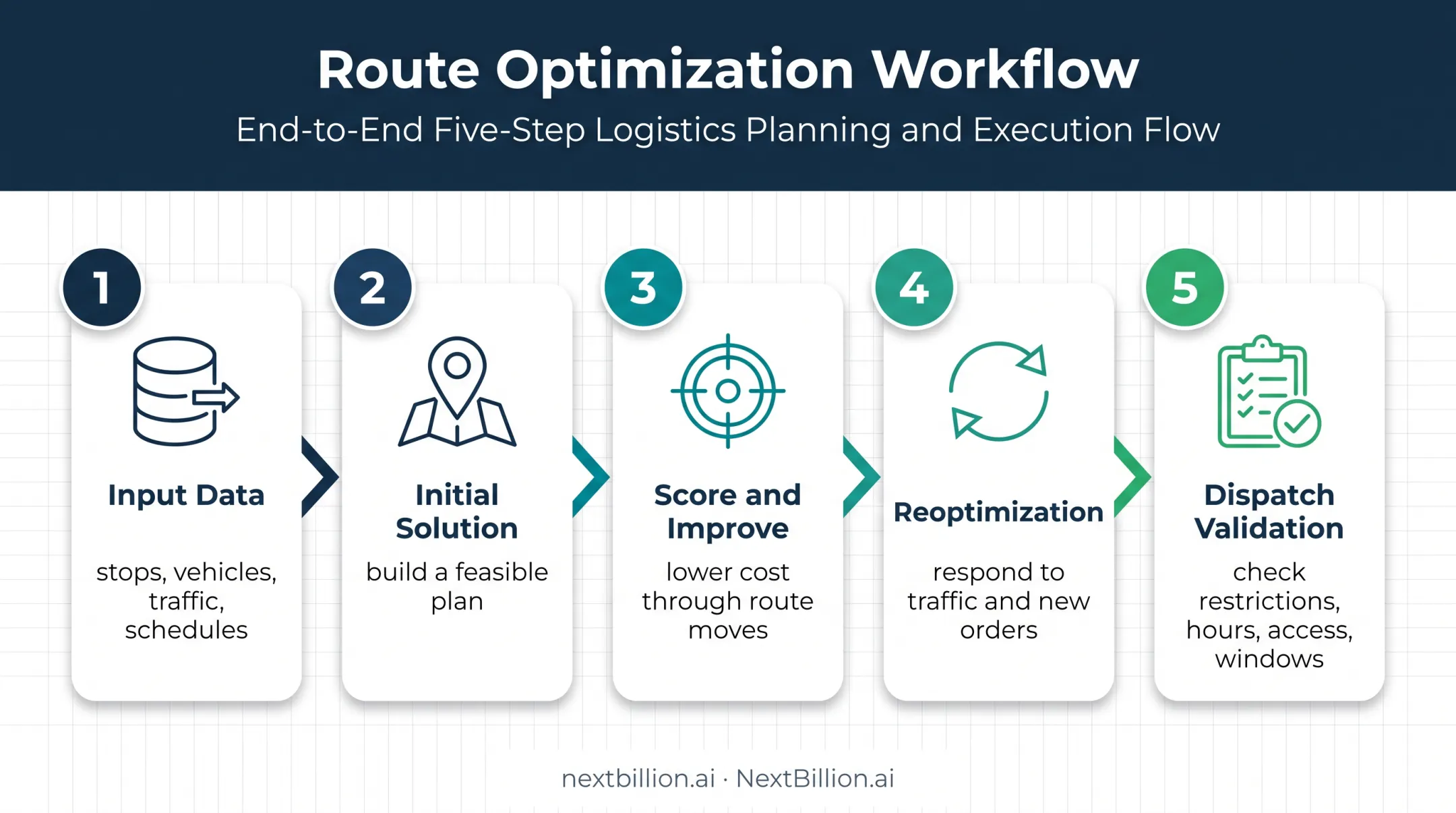

How Route Optimization Algorithms Work
Input data and route modeling
Before optimization starts, the system needs:
- Geocoded stops and road-network attributes
- Travel times and traffic conditions
- Vehicle profiles and stop durations
- Order priorities and operating schedules
Software converts this into a travel-time or distance matrix covering every origin-destination pair. Accuracy matters here because the solver trusts those numbers for every decision. A bad matrix cell can corrupt thousands of comparisons.
Building an initial solution
A solver first builds a feasible plan. Common methods include:
- Nearest-neighbor selection
- Cheapest insertion
- Clarke-Wright savings heuristic (starts with depot-customer-depot routes, then merges in savings order)
- Geographic clustering
- An existing dispatcher plan
A feasible route satisfies the required constraints. An optimized route improves the objective without breaking them. Feasible is the floor, not the goal.
Scoring and improving candidate routes
Each candidate is scored with a cost function. That function can combine distance, drive time, fuel, vehicle count, lateness, overtime, tolls, and penalties for violated preferences.
Improvement operators then rework the plan:
- Relocate a stop to another position or route
- Swap stops between routes
- Reverse a sequence (2-opt) or reconnect three edges (3-opt)
- Combine routes or shift work between vehicles
The solver repeats these moves and keeps changes that lower cost.
Reoptimization and route execution
Live traffic, cancellations, new orders, failed deliveries, road closures, and driver status can trigger partial or full reoptimization. Pillac and colleagues describe dynamic routing as redefining routes repeatedly as information arrives during planning or execution.
Output still needs validation before dispatch. Check vehicle restrictions, driver-hour policies, access rules, and time windows, because a mathematically good plan that a driver cannot legally run has no value.
Which Algorithms Power Route Optimization?
Shortest-path algorithms
Dijkstra's algorithm (1959) finds a minimum-length path between two nodes. A* (1968) adds heuristic guidance, and it stays exact when the heuristic never overestimates remaining cost.
Both are building blocks. They feed travel times into the matrix, but they do not plan multi-vehicle routes. Edge weights matter: distance, expected travel time, road restrictions, or toll avoidance each produces different paths.
VRP formulations
TSP sequences stops for one vehicle. VRP is the broader family. Common variants:
| Variant | Business condition |
|---|---|
| CVRP | Vehicle capacity limits load per route |
| VRPTW | Customers require visits within time windows |
| Pickup and delivery | Paired stops, same vehicle, pickup before delivery |
| Open VRP | Vehicles need not return to the depot |
| Multi-depot VRP | Several depots, each vehicle tied to one |
Exact and constraint-based methods
Mixed-integer linear programming (MILP) models binary edge decisions, and branch-and-bound explores solutions while eliminating suboptimal ones. Constraint programming focuses on satisfying rules.
Gurobi's TSP example shows why modeling is subtle: degree constraints alone permit disconnected subtours, so the model adds subtour-elimination constraints.
VRP is NP-hard. OR-Tools warns that large problems may take years to solve optimally. Exact methods fit smaller batches, high-value schedules, or cases where proving feasibility matters more than speed.
Heuristics and metaheuristics
Heuristics such as savings, greedy insertion, local search, 2-opt, and 3-opt build or improve routes without checking every sequence. They are fast but can stall at local optima.
Metaheuristics (tabu search, simulated annealing, genetic algorithms) accept temporary worse solutions to escape those traps. UPS's ORION system, a metaheuristic system documented in Interfaces, projected annual savings of $300M to $400M. That was a published forecast, not realized savings.
Hybrid and dynamic approaches
Production systems usually combine methods. A fast heuristic builds the start plan, then local search, constraint solving, or a metaheuristic improves it. Vidal's HGS-CVRP pairs genetic search with local-search moves.
Choose an approach based on:
- Problem size and number of constraints
- Required response time
- Acceptable optimality gap
- Reoptimization frequency
- Cost of an infeasible route
How Constraints and Objectives Shape the Best Route
Hard versus soft constraints
Hard constraints cannot be violated:
- Vehicle capacity
- Prohibited roads
- Depot requirements
- Driver-hour limits
- Pickup-before-delivery order
Soft constraints are preferences with a price:
- Preferred delivery windows
- Toll minimization
- Balanced workloads
- Limited route changes
Google's Route Optimization API handles both: hard bounds enforce start and end times, while soft bounds allow deviation at a specified cost.
Objective functions and trade-offs
An objective function weights distance, time, fuel, lateness, vehicle count, overtime, and customer priority. Change the weights and the best valid route changes.
A simple example: Route A is 12 miles shorter but arrives 40 minutes after a customer's window and triggers overtime. Route B is longer but on time. With meaningful lateness and overtime penalties, B wins.
Microsoft warns of one pitfall: pure travel-time minimization can ignore scheduling requirements that depend on travel.
Vehicle and road characteristics
Inputs include dimensions, weight, capacity, refrigeration, emissions rules, bridge limits, and commercial-vehicle restrictions. FHWA's Interstate guidance lists 20,000 lb single axle, 34,000 lb tandem, and 80,000 lb gross, though exceptions and lower Bridge Formula limits apply. Height rules are set by states.
A short route through a low bridge is unusable. Truck-compliant maps and custom road attributes keep it out of the plan.
Time windows, service times, and precedence
Arrival windows, appointments, loading durations, and breaks shape both sequence and total duration. Early arrival creates waiting time. Service time can push a route past its limit even when the driving looks fine.
FMCSA rules add real limits: 11 driving hours after 10 off-duty hours, a 14-hour window, and a 30-minute break after 8 driving hours. Penalty-based preferences do not replace these.

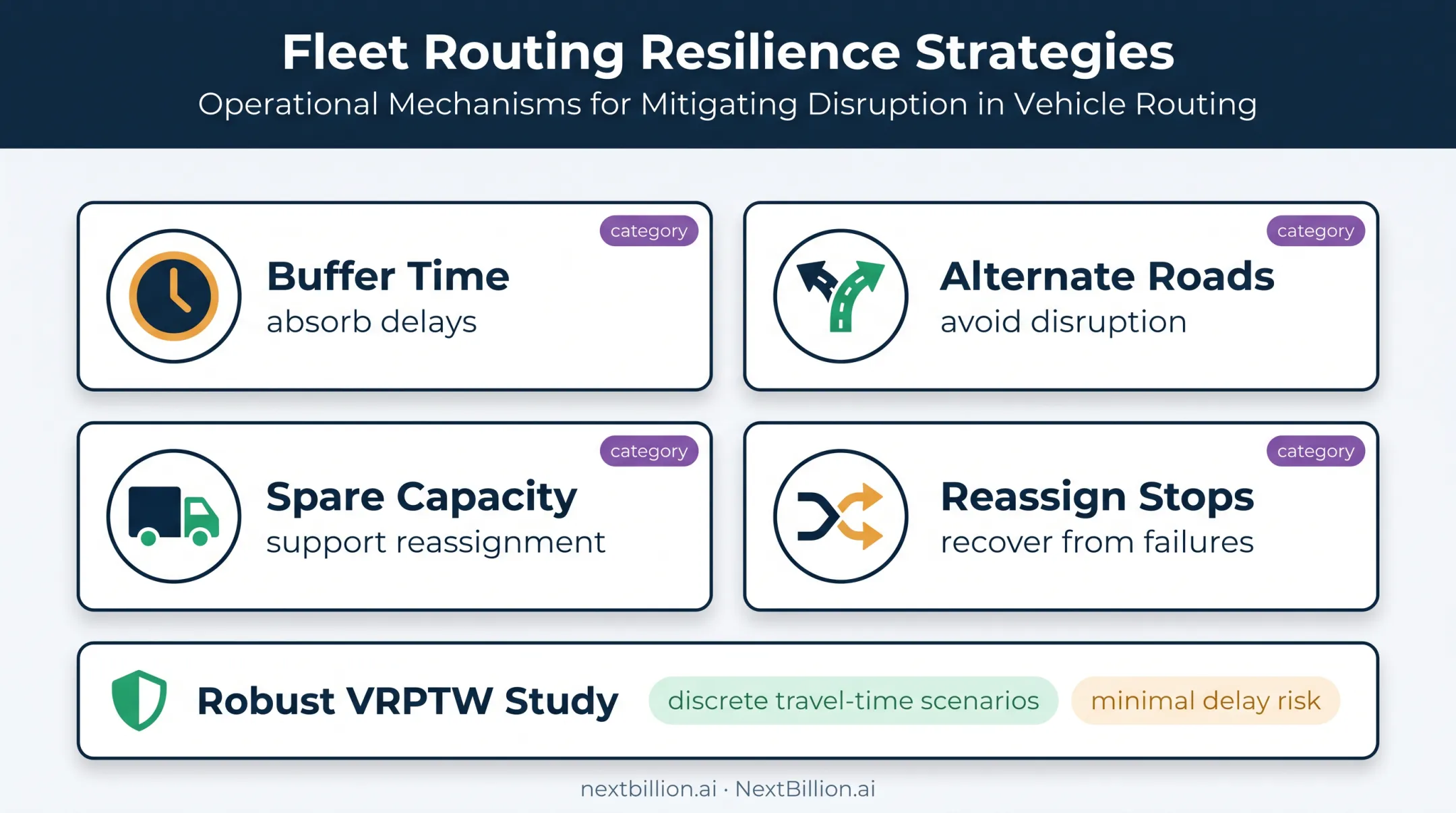

Balancing efficiency with resilience
A tightly optimized plan breaks easily. Resilient plans add buffer time, alternate roads, spare capacity, and the ability to reassign stops. A 2020 robust VRPTW study models uncertain travel times through discrete scenarios, aiming for savings with minimal delay risk.
Weights differ by operation:
- Cost-sensitive delivery favors fewer vehicles and miles
- Healthcare transport favors reliability and timeliness
- Long-haul trucking favors compliance and driver hours
- Field service favors skills matching and appointment adherence
How to Evaluate and Operationalize a Route Optimization System
A strong solver alone is not enough. You need clean inputs, reliable integrations, and production metrics that show whether planned routes hold up on the road.
Data, integration, and deployment requirements
Confirm the stack can handle:
- Order and job ingestion from your OMS or dispatch tools
- Geocoding quality and fresh map data
- Traffic feeds, telematics, and live vehicle state
- Dispatch workflows and driver apps
- Hooks into fleet-management or field-service systems
Weigh these factors next to solver quality:
- API responsiveness under peak load
- Distance-matrix scale and request limits
- Security, compliance, and data residency
- Cloud vs. on-premise deployment model
- Pricing predictability and support depth
Matrix limits vary widely. Google Routes allows 625 elements per request (100 with traffic-aware optimal), while some providers support far larger matrices.
Measuring route quality in production
Compare planned vs. actual values for:
- Drive time and total distance
- Fuel or energy use
- On-time arrival and completed stops
- Overtime and unassigned work
- Route changes and exception rates
Stress-test under normal demand, peak demand, unusual vehicle restrictions, traffic disruptions, and incomplete or late data. Treat perfect-order rate as broader than on-time rate, and keep cost per delivery separate from cost per stop.
Example platform fit
NextBillion.ai’s API-first stack shows how these requirements land in practice. Its Route Optimization API supports hard and soft constraints such as capacity, skills, time windows, depots, and pickup-delivery amounts. Directions and Matrix APIs accept truck size and weight parameters, and the Road Editor API lets you set custom attributes like speed, turn, closure, and truck restrictions.
For scale, the synchronous Fast matrix supports 1000×1000 by default and up to 5000×5000; Flexible mode uses different limits. Deployment options include multi-tenant cloud, private cloud, and on-premise inside a customer’s Kubernetes environment. Validate any platform against your own data, constraints, and failure modes before you commit.
Frequently Asked Questions
What does optimal routing mean?
It means selecting the best route for a specific objective and set of constraints. That is not always the shortest path.
How is route optimization different from shortest-path routing?
Shortest-path routing connects one origin and one destination. Route optimization assigns and sequences multiple stops, vehicles, schedules, and operational rules.
Which algorithms are used for vehicle route optimization?
Solvers use VRP formulations with exact optimization, constraint programming, heuristics, metaheuristics, and hybrids. The right choice depends on scale and complexity.
What data does a route optimization algorithm need?
Stop locations, road and travel-time data, vehicle attributes, capacities, time windows, service durations, driver schedules, priorities, and current conditions.
What is the difference between hard and soft routing constraints?
Hard constraints must be satisfied. Soft constraints are preferences traded off through penalties or objective weights.
Can route optimization respond to real-time traffic and disruptions?
Yes. Dynamic systems recalculate when traffic, closures, cancellations, new orders, failed stops, or vehicle status make the original plan less effective.
