If you build GIS pipelines, telematics products, or logistics software, road alignment drives route reconstruction, mileage, travel-time analysis, and operational decisions. This article walks through the workflow, the main algorithm families, the factors that change results, and when map matching is the wrong tool.
Key Takeaways
- Map matching combines GPS observations with a road network to infer the most plausible segment and path.
- Good algorithms weigh heading, speed, accuracy, road direction, and connectivity, not just distance.
- Methods range from geometric snapping to weighted, topological, HMM, and learned approaches.
- Pick an algorithm based on GPS quality, network complexity, latency, and scale.
What Is Map Matching and Why Is It Used?
Map matching converts a sequence of latitude-and-longitude points into a road-aligned trajectory. The algorithm associates each observation with a candidate road segment, then selects the most plausible connected path.
Newson and Krumm's 2009 paper frames it as inferring the most likely route from time-stamped coordinates while accounting for measurement noise and network layout.
The goal: turn scattered points into a connected picture of where a vehicle probably traveled, keeping timestamps, speed, direction, and uncertainty intact.
How it differs from related tasks
- Geocoding identifies an address.
- Routing plans a path between locations.
- Simple snapping picks a nearby geometry without inferring the route actually traveled.
Why raw GPS misleads
GPS.gov says smartphones are typically accurate to 4.9 meters under open sky, and worse near buildings, bridges, and trees. Add multipath reflections, tunnels, urban canyons, device variation, sparse sampling, and parallel roads, and errors pile up.
Using unprocessed GPS has real costs:
- False road assignments and implausible turns
- Incorrect mileage
- Distorted travel-time analysis
- Unreliable fleet and traffic insights
NextBillion.ai's Snap-to-Road API documentation describes the same symptoms: traces jumping across roads, vehicles placed on parallel streets, diagonal cuts across city blocks, and positions inside buildings or rivers.
Map matching is a processing practice, not a substitute for collecting quality data.

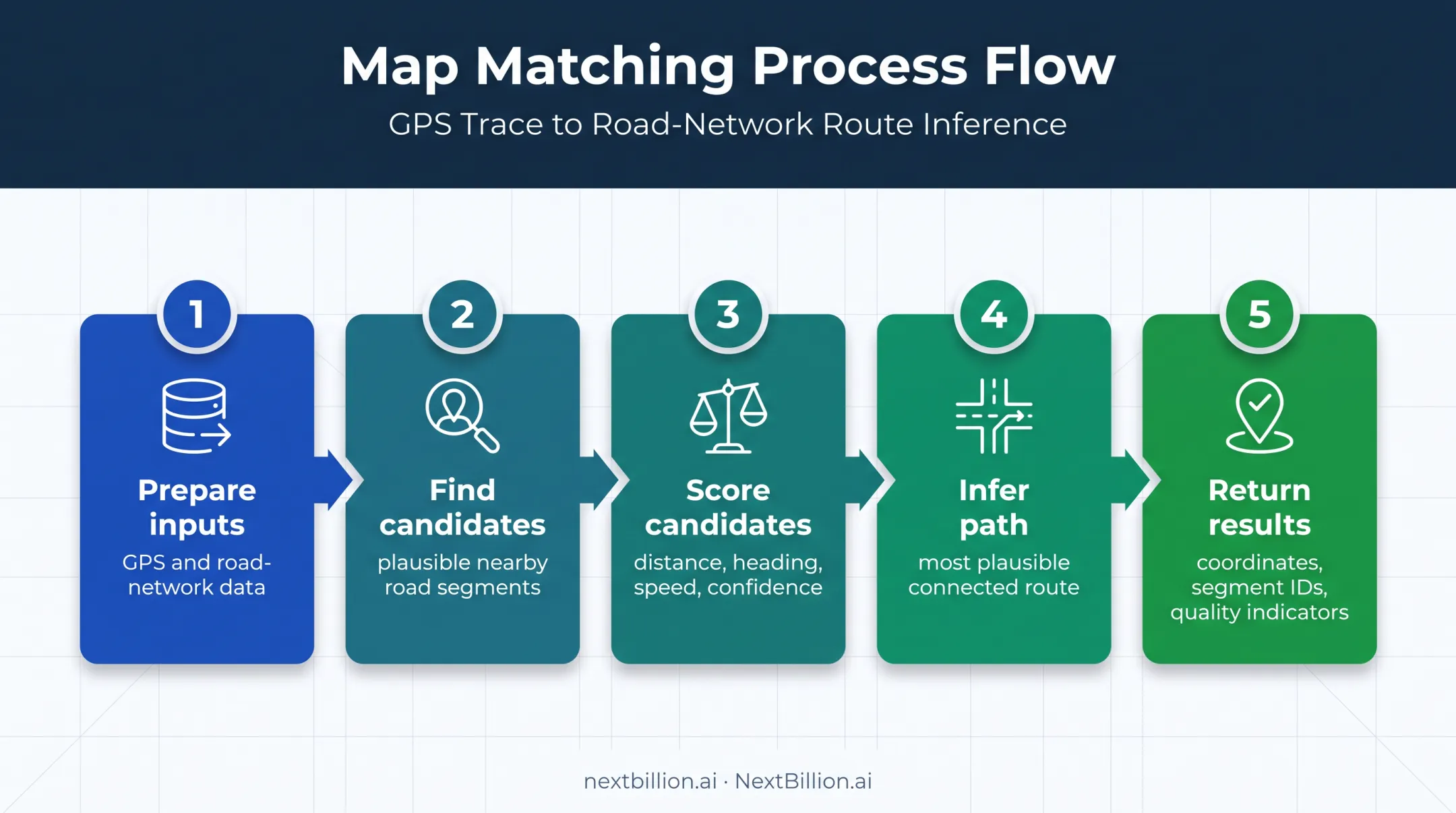

How Map Matching Works: The Conceptual Flow
The pipeline runs in five stages: prepare inputs, find candidate roads, score candidates, infer the connected path, and return matched coordinates or segment IDs with quality indicators.
Step 1: Prepare the GPS and road-network inputs
Preserve these trajectory fields:
- Latitude, longitude, and timestamp
- Trip or vehicle identifier
- Reported accuracy, heading, speed, and sensor details, when available
The road network should include:
- Connected segments and geometry
- Node or edge IDs
- Direction and turn connectivity
- Access restrictions
- Attributes such as speed limits or road class
Before matching, clean the data:
- Standardize the coordinate system
- Sort by timestamp
- Drop duplicates and impossible points
- Handle missing values
- Check how fresh the map is
Step 2: Generate candidate road segments
A spatial index or search region finds several plausible segments near each point. It doesn't grab the single closest road.
The search area should respond to reported accuracy, sampling interval, and speed. Too narrow a radius excludes the correct road, and no scoring can recover it.
Tool parameters differ here: OSRM treats radiuses as GPS precision standard deviation, while Mapbox treats it as maximum snapping displacement (default 5 m, maximum 50 m).
Step 3: Score candidates and select the most likely path
Candidate scores can combine:
- Perpendicular distance
- Heading agreement
- Speed compatibility
- GPS confidence
- Road direction
- Compatibility with the previous matched segment
Point-level scoring and sequence-level inference are different things. The best candidate for one point may not produce the most plausible trip. Sequence-aware methods evaluate transitions and penalize impossible jumps, illegal turns, disconnected roads, and movements requiring implausible speed.
The output usually includes:
- Matched coordinates projected onto the road
- Segment or node IDs
- Reconstructed route geometry
- Confidence values
- Flags for ambiguous or low-quality matches
Validate by overlaying raw and matched trajectories, then check:
- Point error
- Segment accuracy
- Route continuity
- Turn plausibility
- Unmatched observations
Map Matching Algorithms Explained
Geometric or nearest-road matching
The baseline: find the closest segment to each point and project onto it. It works on sparse networks, clean GPS, and simple offline jobs.
It breaks where proximity says nothing about direction or continuity:
- Parallel roads
- Interchanges and intersections
- Divided highways
- Noisy GPS data
Weighted candidate matching
Weighted matching builds a candidate set and blends normalized signals: distance, bearing, speed, road class, and reported accuracy. Weights need calibration to your data and use case. Heading is unreliable at low speed. Distance misleads when nearby roads are separated by barriers or elevation.
Topological or connectivity-aware matching
This approach rewards candidates that stay on the same segment or move to a connected, directionally valid one. That cuts implausible hops between nearby roads, which helps at intersections, in dense cities, and with noisy data. The risk: an early wrong match gets reinforced unless the algorithm can recover.

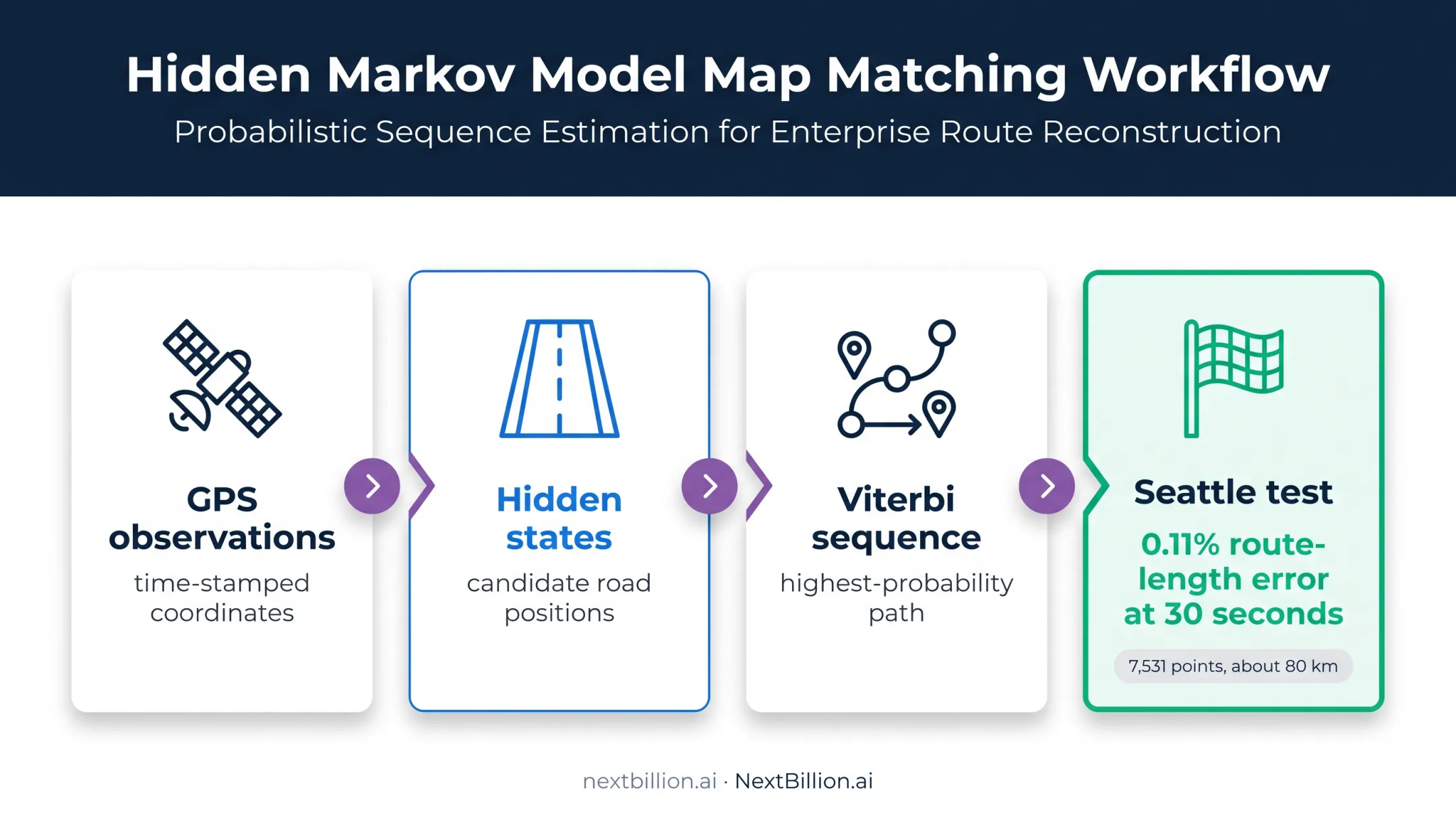

Hidden Markov Model and Viterbi matching
The standard HMM framing treats GPS points as observations and candidate road positions as hidden states. Valhalla's Meili documentation describes Gaussian emission probabilities (how well a segment explains a point). Transition probabilities capture how plausible movement between segments is by comparing network distance with observation displacement.
The Viterbi algorithm then picks the highest-probability sequence across the whole window. That often beats point-by-point snapping when samples are noisy or sparse. In Newson and Krumm's Seattle test (about 80 km, 7,531 points), the method reproduced the reference route exactly at one-second sampling and had 0.11% route-length error at 30 seconds. That's one route, not a universal guarantee.
AI, machine learning, and hybrid approaches
Learned models can use historical trajectories, road geometry, turn behavior, speed profiles, and time of day. Examples include DeepMM, L2MM, and GraphMM, which uses graph neural networks to model road and trajectory correlations.
Unlike a classical HMM with hand-defined probabilities, they learn patterns from data. That demands representative training data, monitoring, retraining, explainability, and geographic generalization.
Counterevidence matters. In the L2MM study, an HMM slightly outperformed L2MM on high-frequency Chongqing data at 30 seconds. The reference paths came from HMM matching of 15-second trajectories, not independent observation.
Hybrid strategies switch or blend geometric, weighted, topological, HMM, and learned signals based on GPS accuracy, road context, or confidence. No single algorithm fits every trip.
When comparing methods, look at:
- Point-level accuracy and positional error
- Route or segment-sequence similarity
- Continuity
- Latency and compute cost
- Explainability
- Performance across GPS-quality bands
Metrics, geography, and label provenance differ between studies, so published results don't form one shared leaderboard. Run your own tests.
Where Map Matching Is Applied and What Affects Results
Common applications
- Fleet and telematics analytics (AWS documents matching vehicle coordinates to segments for fleet management)
- Delivery and field-service tracking
- Ride-hailing trip reconstruction, including ETA and fare support at Lyft
- Travel-time and congestion analysis
- Transportation safety planning, such as a New York City study of 4,500 city-owned vehicles
- Insurance analysis, where road-snapped speed profiles quantify speeding frequency and severity
- Post-trip investigation
Inputs and road-network quality
GPS inputs that shape the candidate set and confidence include:
- Sampling frequency and accuracy
- Heading, speed, and timestamps
- Device type and signal gaps

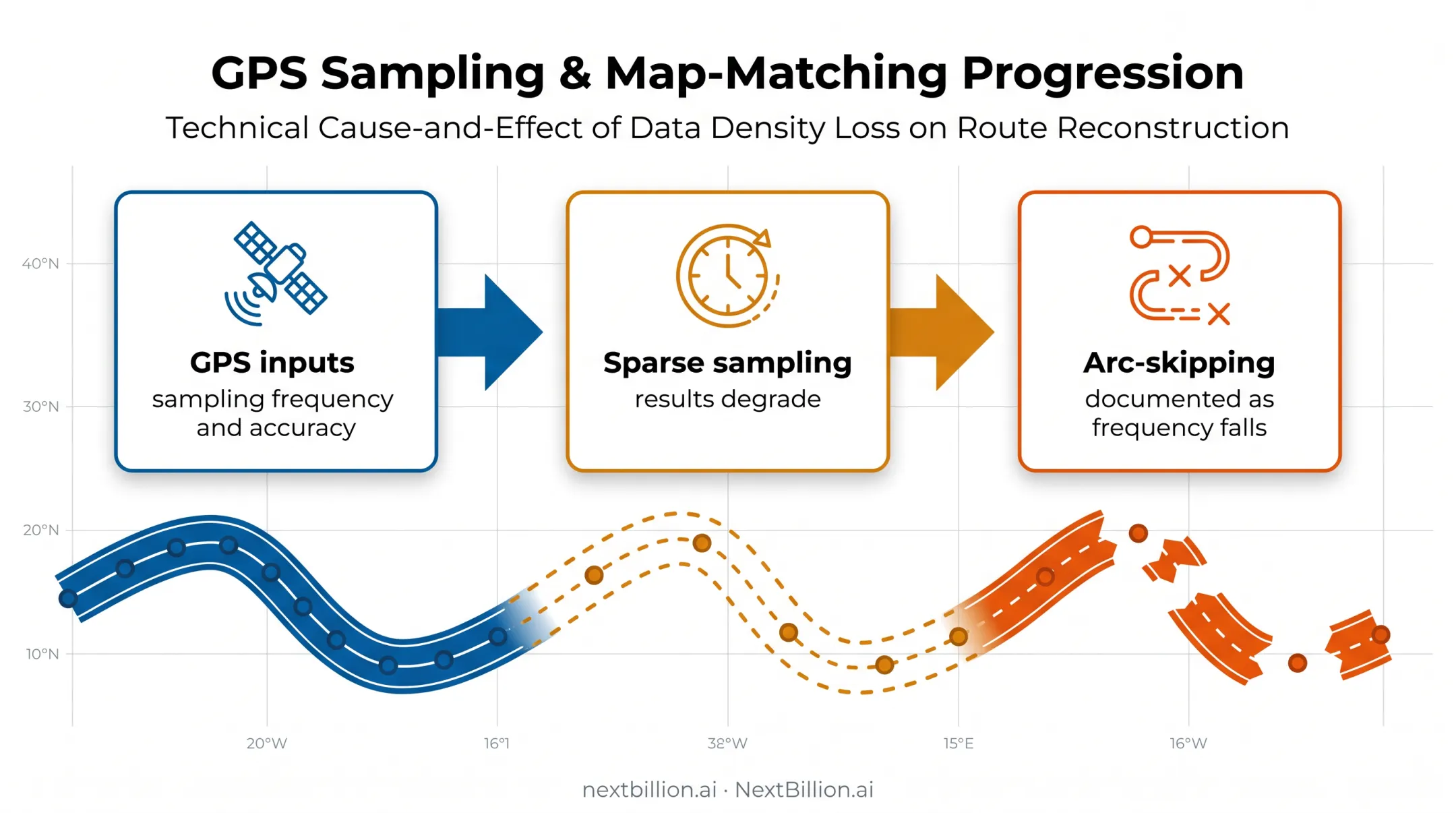

Sparse sampling degrades results. The ST-Matching paper documents "arc-skipping" as sampling frequency falls.
Network quality matters just as much. A road missing from the map can't enter the candidate graph, so it can never be selected. Match quality also depends on:
- Map freshness and geometry
- Road hierarchy and one-way rules
- Turn restrictions
- Bridge and tunnel representation
Operating conditions, scale, and constraints
- Hard conditions: urban canyons, tunnels, parallel roads, stacked interchanges, rural gaps, low-speed movement, and long intervals call for stronger sequence reasoning or extra sensors.
- Batch vs. real time: Lyft notes real-time matching can use only observations available so far and needs low latency, while end-of-ride processing can use the full history.
- Privacy: precise geolocation is sensitive personal information under California's CCPA, so retention and disclosure rules apply.
- Vehicle type: truck, emergency, and service vehicles need vehicle-specific restrictions (height, weight, hazmat limits), not just the nearest road on the map.
Common Issues, Evaluation, and When Map Matching May Not Be Appropriate
Misconceptions to drop
- The closest road isn't always the traveled road.
- A smooth matched line isn't proof of accuracy.
- A high point-level score can hide a wrong turn or route sequence.
How to evaluate
Combine labeled or manually reviewed trips with these measures:
- Point-to-road error
- Correct segment classification (share of reference segments matched correctly)
- Route mismatch fraction: incorrectly added plus omitted length, divided by true-route length
- Transition validity and continuity
- Unmatched-point rate and confidence calibration
- Latency and cost
Confidence scales aren't comparable across providers. OSRM and Mapbox both return 0-1 values, but neither documents equivalent calibration.
Implementation checklist
- GPS quality and sampling interval
- Road-network coverage and freshness
- Real-time versus batch needs
- Explainability of results
- Transferability across geographies
- API or data-pipeline fit
- Scalability and monitoring
- Ability to customize road attributes and constraints
For production infrastructure, teams may evaluate NextBillion.ai. It offers an API-first mapping and routing stack with custom maps and road-attribute editing, per-vehicle or per-order pricing, cloud-agnostic or on-premise deployment, and fleet-management integrations such as Geotab and Samsara. Its Snap-to-Road API accepts up to 200 coordinates per request and returns attributes like speed limits and road curvature. Treat those as selection criteria; they aren't all map-matching algorithms.
When map matching falls short
- Off-road or indoor movement
- Waterways and trails absent from the network
- Extremely sparse or unreliable data
- Applications that must preserve raw uncertainty
- Cases where IMU, Wi-Fi, LiDAR, camera localization, or dead reckoning give better position
A 2023 study paired radar and inertial sensors with a Kalman filter before road matching in Calgary and Toronto. It supports sensor supplementation when GNSS degrades, not GPS-only recovery in tunnels.
Conclusion
Map matching is a probabilistic, network-aware inference process, not a simple geometric snap that drags every point to the nearest line.
The right algorithm depends on GPS quality, road-network detail, movement context, scale, latency, and whether you value point accuracy or route continuity. Validate on your own trips, in your own geography, before you commit.
Frequently Asked Questions
What is the basic map matching algorithm?
Nearest-road (geometric) matching projects each GPS point onto the closest road segment. Production systems add heading, accuracy, connectivity, or sequence-based reasoning on top.
What type of data is a map?
Maps are geospatial data, stored as raster (a grid of valued cells) or vector (points, lines, polygons). Map matching typically uses vector road data: connected segments, nodes, and attributes.
How does map matching work with noisy GPS data?
It searches nearby road candidates, then scores them using distance, direction, timestamps, connectivity, and movement constraints. The result is the most likely connected path, not the closest point.
Which map matching algorithm is most accurate?
None is universally best. Geometric methods suit clean data, HMMs handle noise and sparsity well, and learned or hybrid methods can help where training data is representative. Test against your own GPS quality and road complexity.
Why is matching GPS points to the nearest road not always reliable?
Parallel roads, intersections, divided highways, bridges, tunnels, and urban multipath all produce wrong nearest matches. Proximity ignores travel direction and route continuity.
How do you evaluate map matching accuracy?
Compare against labeled or reviewed trips using point-to-road error, correct segment assignment, route-sequence similarity, and turn validity. Also track confidence and the unmatched-observation rate.
