Developers hit the same snags again and again: plugins tied to one provider, display rules that restrict which map you can use, and rate limits that surface only after launch. This guide covers forward and reverse geocoding, compares plugin and direct API setups, and walks through the key steps for a US-focused Leaflet build.
Key Takeaways
- Leaflet displays map data; a separate geocoding service converts addresses and coordinates.
- Plugins add a ready-made search control quickly; direct API calls give you control over the UI and request lifecycle.
- Settle API keys, attribution, provider terms, rate limits, and result validation before launch.
What Is Geocoding in Leaflet?
Forward geocoding converts text, such as an address or place name, into latitude and longitude. Reverse geocoding converts coordinates into a readable address.
Leaflet's official plugin catalog lists geocoding under external services, which confirms it is not built in.
Three pieces work together:
- Leaflet renders tiles, markers, and map interactions.
- The plugin connects a search UI to a provider.
- The geocoding API returns address data.
OpenStreetMap and Leaflet are not the same thing. OpenStreetMap is a community-built geographic dataset, often used for tiles or geocoding. Leaflet is an open-source JavaScript library (BSD-2-Clause) that displays maps and contains no provider-specific code.

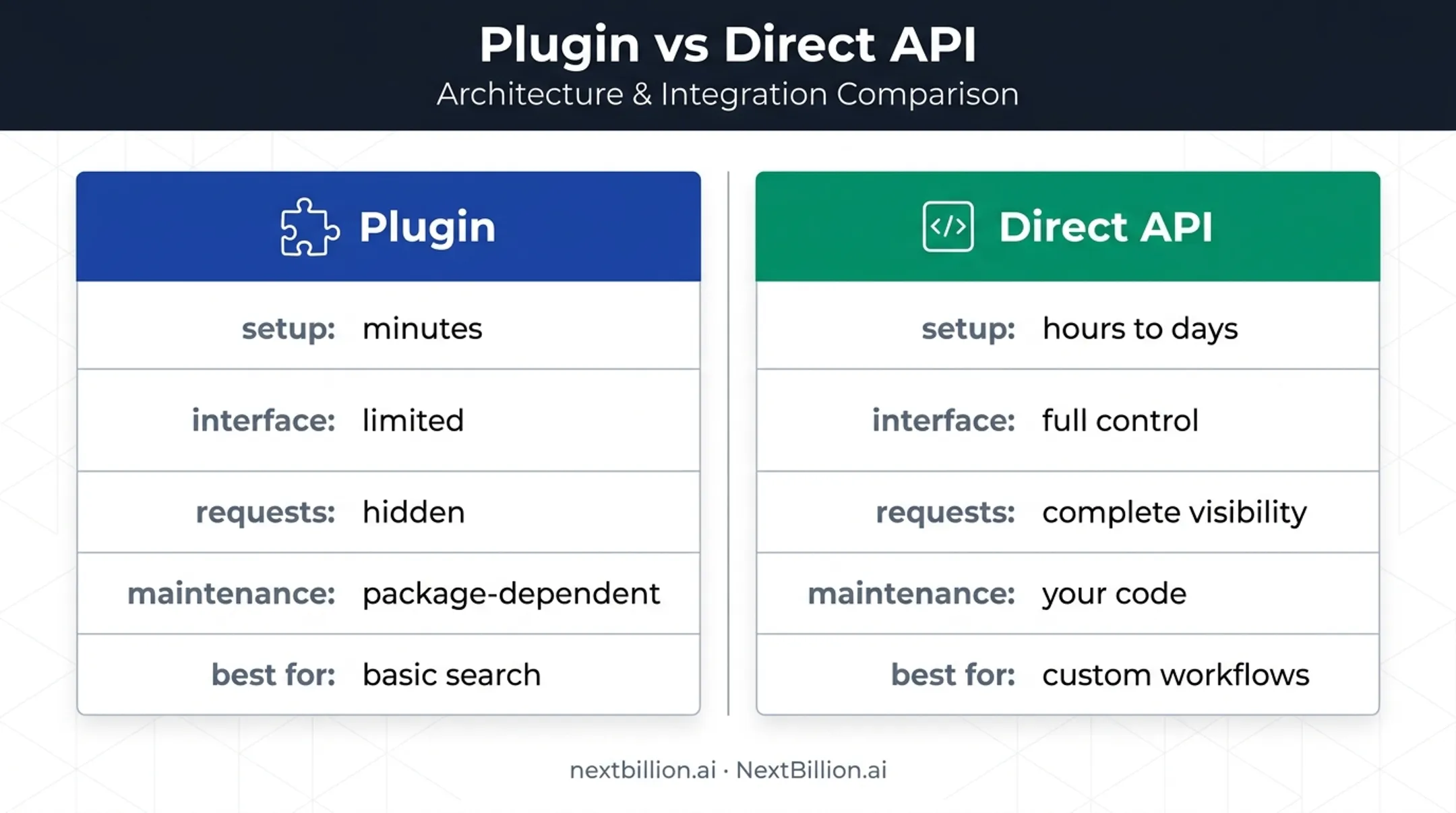

Choose Between a Leaflet Geocoding Plugin and a Direct API
| Factor | Plugin | Direct API |
|---|---|---|
| Setup time | Minutes | Hours to days |
| Interface control | Limited to plugin options | Full |
| Request visibility | Hidden behind the plugin | Complete |
| Maintenance | Depends on the package | Your code |
| Server-side validation, batching, caching | Awkward | Natural fit |
Which approach fits which project?
Choose a plugin for a basic address-search box, a quick prototype, or provider-supported suggestions with minimal code.
Choose a direct API when you need a custom search experience, server-side validation, special response fields, batching, custom caching, or hooks into existing business workflows.
What to evaluate in a geocoding provider
Compare these before committing:
- US address coverage and response accuracy
- Forward and reverse geocoding, autocomplete, and batch support
- Language options and bounding boxes
- Quotas, rate limits, and storage permissions
- Attribution, privacy terms, and commercial usage rights
Rules vary sharply by provider:
- Public Nominatim allows 1 request per second and forbids client-side autocomplete, per the Nominatim usage policy
- Google and Mapbox require results to appear on their own maps
- ArcGIS separates stored from non-stored geocodes
- Census returns Census geographies for coordinate lookups, not street addresses
Plugin and provider compatibility
Some plugins are tied to one provider; others support several. Current npm releases:
| Plugin | Version | Leaflet range | Providers |
|---|---|---|---|
| leaflet-control-geocoder | 4.0.0 | ^1.6.0 | Nominatim default; ArcGIS, Google, Mapbox, Photon, Pelias; custom |
| Esri Leaflet Geocoder | 3.1.7 | ^1.0.0 | ArcGIS services |
| leaflet-geosearch | 4.4.0 | ^1.6.0 | OpenStreetMap, Esri, Google, Mapbox, Geoapify, OpenCage, Pelias |
Dependency ranges are not Leaflet 2 certifications. Verify maintenance activity, supported versions, documentation, and whether the plugin exposes the callbacks and response fields you need.
Enterprise location-platform consideration
Logistics, fleet, and field-service teams often need geocoding to sit beside routing and dispatch. NextBillion.ai provides separate Geocoding and Reverse Geocoding APIs under Maps & Geocoding, plus an autocomplete endpoint.
Confirm endpoint availability, pricing, authentication, and usage terms in the current documentation before building on it. Verify storage permissions and geocoding-specific rate limits directly.
Set Up a Leaflet Geocoding Plugin
Install the required packages or CDN assets
Every setup follows the same stack: Leaflet core, the geocoder plugin, and each package's CSS.
npm install leaflet leaflet-control-geocoder
Or load from a CDN, only if your chosen plugin publishes CDN files (Control Geocoder ships dist/Control.Geocoder.css and dist/Control.Geocoder.js).
- Pin compatible versions.
- Load Leaflet CSS before plugin styles.
- Avoid loading duplicate Leaflet or plugin files.
Initialize the map and tile layer
<div id="map" style="height: 480px;"></div>
<script>
const map = L.map('map').setView([39.5, -98.35], 4);
L.tileLayer('https://tile.openstreetmap.org/{z}/{x}/{y}.png', {
maxZoom: 19,
attribution: '© OpenStreetMap contributors'
}).addTo(map);
</script>
The container needs a defined height. The tile provider and geocoding provider may be separate services, so check credentials, terms, and attribution for each independently. OSM raster tiles also require visible attribution and prohibit bulk downloading.
Add the geocoding control
const geocoder = L.Control.geocoder({
defaultMarkGeocode: false,
position: 'topright'
}).addTo(map);
Provider settings, such as API keys or geocoder instances, are specific to each plugin. Copy them from current documentation rather than assuming they carry across plugins.
Handle selected results and map movement
Use the plugin's result event (markgeocode in Control Geocoder) to read latitude, longitude, formatted address, and the optional bounding box.
let marker;
geocoder.on('markgeocode', (e) => {
const { center, name, bbox } = e.geocode;
if (marker) map.removeLayer(marker);
marker = L.marker(center).addTo(map).bindPopup(name).openPopup();
bbox ? map.fitBounds(bbox) : map.flyTo(center, 16);
});
- Clear the old marker before adding a new one.
- Show the selected address in a popup or panel.
- Use
fitBoundsfor regions such as cities or ZIP codes, where a bounding box beats a single-point zoom.
Customize the search experience and errors
Plugins do not decide how results appear on the map. You do. Plan for:
- Empty searches and no-result responses
- Network failures and loading states
- Keyboard accessibility
- CSS overrides for the control
- Suggestion callbacks, if the plugin offers them
Autocomplete can be restricted. Public Nominatim forbids it, and on Mapbox each keystroke can count as a billable request.
Connect Leaflet Directly to a Geocoding API
Build the search request

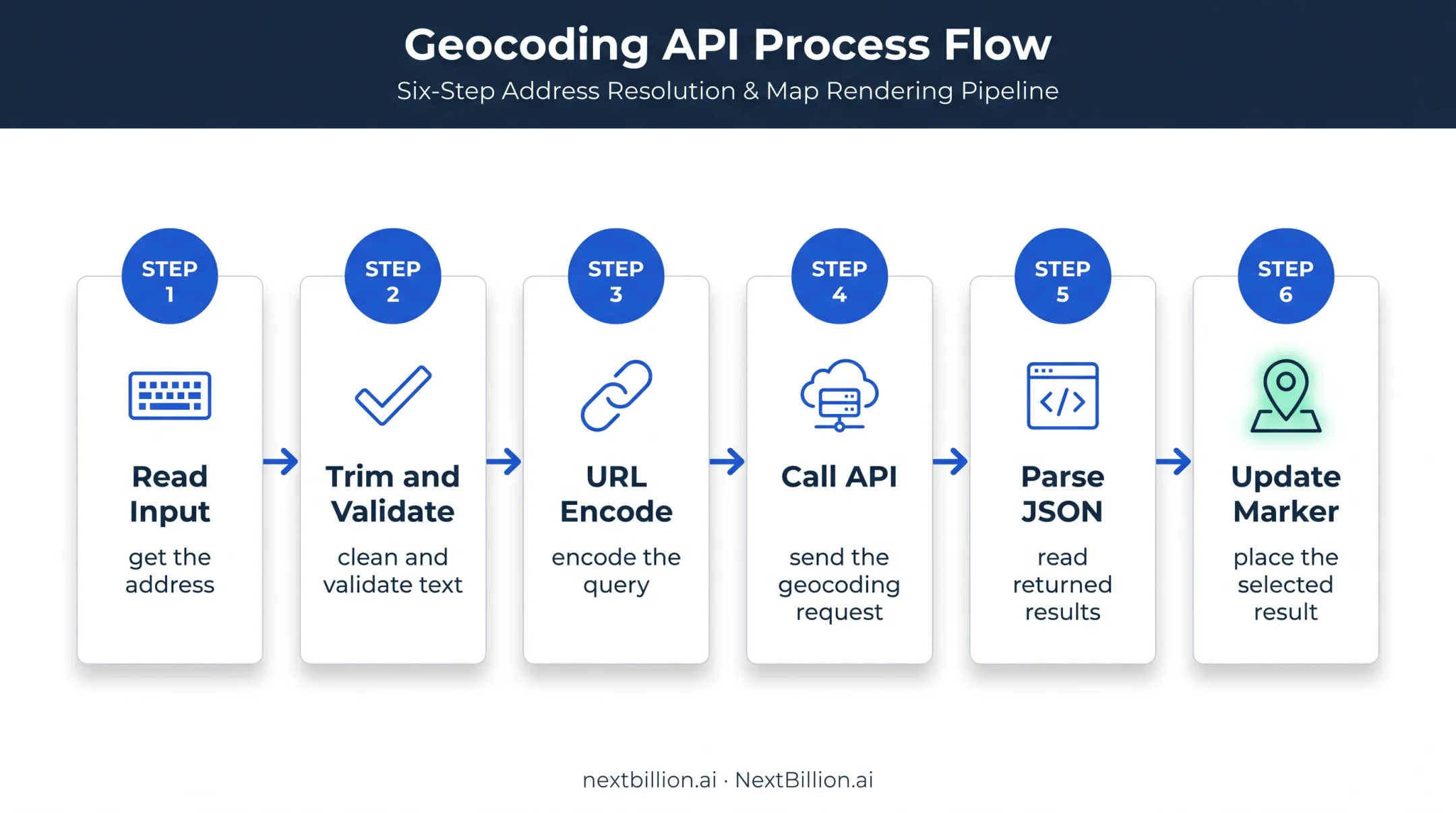

The flow: read the input, trim and validate it, URL-encode it, call the API, parse JSON, update the marker. Verify the provider's method, parameters, and response schema first.
async function geocode(address) {
const q = encodeURIComponent(address.trim());
const res = await fetch(
`https://nominatim.openstreetmap.org/search?q=${q}&format=jsonv2&countrycodes=us&limit=5`
);
if (!res.ok) throw new Error('Geocoding failed: ' + res.status);
return res.json();
}
A forward query takes a US street address. A reverse query takes coordinates, for example Nominatim's /reverse?lat=LAT&lon=LON&format=jsonv2. Geocodio uses /geocode?q=ADDRESS and /reverse?q=LAT,LNG.
Authenticate without exposing unnecessary secrets
Anything sent to the browser can be read. OWASP guidance says never to send secrets to clients. If you must use a browser key, apply provider restrictions: allowed origins, endpoint restrictions, and usage caps.
Use a server-side proxy when the provider requires a secret credential, or when you need validation, logging, caching, or privacy controls. The proxy should build permitted requests, not relay arbitrary calls.
Parse and validate the response
Before touching the map, check:
- HTTP status and provider error fields
- Result count and coordinate presence
- Coordinate ranges (latitude -90 to 90, longitude -180 to 180)
- Formatted address and confidence or accuracy fields
- Bounding box, if present
When several matches come back, show a list or ask the user to choose. Never silently take the first result. Preserve each provider's quality labels: Geocodio returns accuracy (0-1) and accuracy_type, HERE returns queryScore, and ArcGIS returns a candidate score.
Add markers and update the map
- Remove the previous marker.
- Create a new
L.marker([lat, lon]). - Bind a popup with the selected address.
- Call
setView,flyTo, orfitBounds.
Check coordinate order. GeoJSON (RFC 7946) is [longitude, latitude], while Leaflet expects [latitude, longitude]. Nominatim also returns lat and lon as strings, so convert them with parseFloat.
Improve request behavior for real users
- Debounce input or send requests only on submit (and never autocomplete against public Nominatim)
- Cancel stale requests with
AbortController - Show a loading indicator
- Retry transient failures, not client errors
- Separate client errors (400s) from provider or network failures
Test with these inputs:
- Complete addresses and city-and-state searches
- ZIP codes and abbreviations such as "St" and "Ave"
- Misspellings and ambiguous names like "Springfield"
- Addresses with unit numbers
- Reverse lookups at known coordinates
Production Checklist for Leaflet Geocoding
Input and results
- Normalize and validate address input.
- Record the selected provider result.
- Define review steps for low-confidence, partial, or ambiguous matches before they affect deliveries or field visits. Census rooftop coordinates, for example, are interpolated along address ranges—treat them as approximate until verified.

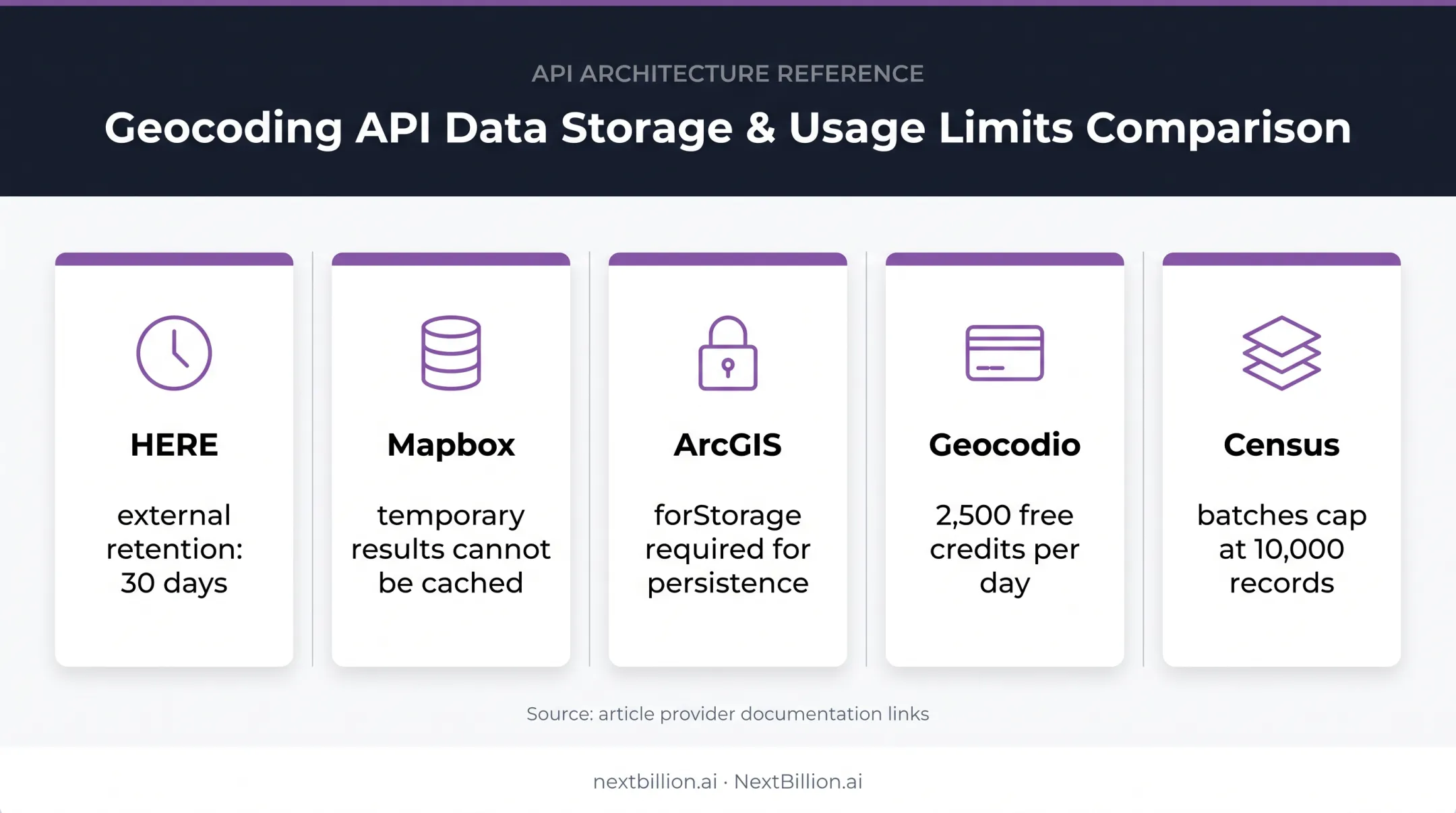

Caching, batching, and cost
- Cache or batch to cut repeated requests, but confirm the provider permits storing results. HERE's default external retention limit is 30 days, Mapbox temporary results cannot be cached, and ArcGIS requires
forStoragefor persisted results. - Check current quotas and pricing on provider pages. For example, Geocodio's pricing includes 2,500 free credits per day, and Census batches cap at 10,000 records.
Security and operations
- Rotate API keys and serve everything over HTTPS.
- Configure CORS correctly (some requests trigger an
OPTIONSpreflight). - Handle personally identifiable information and set retention policies. Addresses are personal data.
- Keep OSM and provider attribution visible.
- Monitor errors, log failures, and track uptime.
- Plan a fallback for outages and rate-limit (429) responses.
Frequently Asked Questions
Is there a free API for geocoding?
Some providers offer free tiers or open-data options, such as the US Census Geocoder or public Nominatim. Coverage, rate limits, attribution, commercial use, bulk processing, and storage rules vary, so check current documentation.
Is Leaflet map API free?
Leaflet itself is open source under BSD-2-Clause. Map tiles and geocoding services are separate, and may carry their own pricing, usage limits, attribution, and licensing.
Which geocoding API is the best?
It depends on coverage, accuracy, reverse geocoding, autocomplete, response fields, cost model, privacy, latency, support, and your expected volume. Test candidates with your own US addresses.
How can I find the geocode for an address?
Submit the address to a forward-geocoding API, pick a validated result, and read its latitude and longitude. Then pass them to Leaflet as [lat, lng].
How to find an address with longitude and latitude coordinates?
Send the coordinates to a reverse-geocoding endpoint and inspect the returned address and confidence. Expect cases with no precise street address; Nominatim returns the closest suitable object, which in dense areas can be on another street.
Are OpenStreetMap and Leaflet the same?
No. OpenStreetMap supplies geographic data; Leaflet displays interactive maps. Leaflet can use OpenStreetMap-based tiles, but the projects are separate, so review their usage terms independently.
